What is Stainless Steel

Stainless steel is a corrosion-resistant alloy that has found a multitude of applications across various industries due to its exceptional properties, making it a material of choice for a wide range of products. It is known for its resistance to rust, staining, and corrosion, making it highly durable and low-maintenance. The primary alloying elements in stainless steel are chromium, nickel, molybdenum, and sometimes other elements, each contributing to its unique characteristics.

Composition of Stainless Steel:

Chromium (Cr): The key element providing corrosion resistance. A minimum of 10.5% chromium content is necessary to form a protective oxide layer on the surface.

Nickel (Ni): Enhances corrosion resistance, toughness, and ductility. Nickel is often present in austenitic stainless steels.

Molybdenum (Mo): Increases resistance to pitting and crevice corrosion. Commonly found in high-performance stainless steels.

Types of Stainless Steel

Composition: Chromium (16-26%), Nickel (6-22%)
Characteristics: Non-magnetic, excellent corrosion resistance, high ductility, and formability. Commonly used in food processing, chemical industries, and medical equipment.

Composition: Chromium (10-30%)
Characteristics: Magnetic, good corrosion resistance, lower ductility compared to austenitic. Widely used in automotive applications and decorative trim.

Composition: Chromium (12-18%), moderate levels of nickel
Characteristics: Magnetic, high strength, good hardness, and wear resistance. Commonly used in cutlery, aerospace, and industrial equipment.

Composition: Combination of austenitic and ferritic structures (typically 50/50)
Characteristics: Balanced properties of both austenitic and ferritic stainless steels, offering high strength and corrosion resistance. Applied in chemical processing and oil & gas industries.

Composition: Chromium (15-17%), Nickel (3-5%), Copper (3-5%)
Characteristics: High strength, corrosion resistance, and toughness. Precipitation hardening is achieved through heat treatment. Commonly used in aerospace applications.

Stainless Steel Material Properties

Property Austenitic (e.g., 304, 316) Ferritic (e.g., 430) Martensitic (e.g., 410) Duplex (e.g., 2205)
Chemical Composition Chromium, Nickel, Manganese Chromium Chromium, Carbon Chromium, Nickel, Molybdenum
Corrosion Resistance Excellent Good Moderate to Good Excellent
Strength Moderate to High Moderate High High
Ductility High Low Moderate Moderate to High
Toughness High Moderate Moderate High
Magnetic No Yes Yes Yes (but less than ferritic)
Formability Excellent Good Poor Good
Weldability Good Good Fair Good
Heat Resistance Good Moderate Moderate Excellent
Hardenability No No Yes Yes
Applications - Food industry, Chemical processing, Medical equipment, Automotive components - Kitchenware, Automotive trim, Heat exchangers - Cutlery, Industrial equipment, Aerospace components - Chemical and petrochemical industries, Structural components

Stainless Steel Size Ranges

Stainless Steel Form Size Range
Sheets/Plates
  • Thickness: 0.5 mm to 50 mm
  • Width: Up to 2000 mm
  • Length: Up to 6000 mm
Coils
  • Thickness: 0.1 mm to 12 mm
  • Width: Up to 2000 mm
  • Coil ID: 150 mm to 610 mm
Bars
  • Round: Diameter 2 mm to 300 mm
  • Square: Size 2 mm to 150 mm
  • Hexagonal: Across flats 2 mm to 50 mm
  • Flat: Thickness 3 mm to 300 mm, width up to 1200 mm
Tubes/Pipes
  • Seamless Tubes: OD 6 mm to 406 mm, wall thickness 0.5 mm to 25 mm
  • Welded Tubes: OD 6 mm to 3000 mm, wall thickness 0.5 mm to 25 mm
  • Pipe Sizes: Nominal sizes 1/8" to 48" (DN6 to DN1200)
Wires Diameter: 0.01 mm to 12 mm
Forgings
  • Diameter/Thickness: Customized
  • Length: Customized
Castings
  • Weight: Varies from grams to tons
  • Size: Customized based on casting process

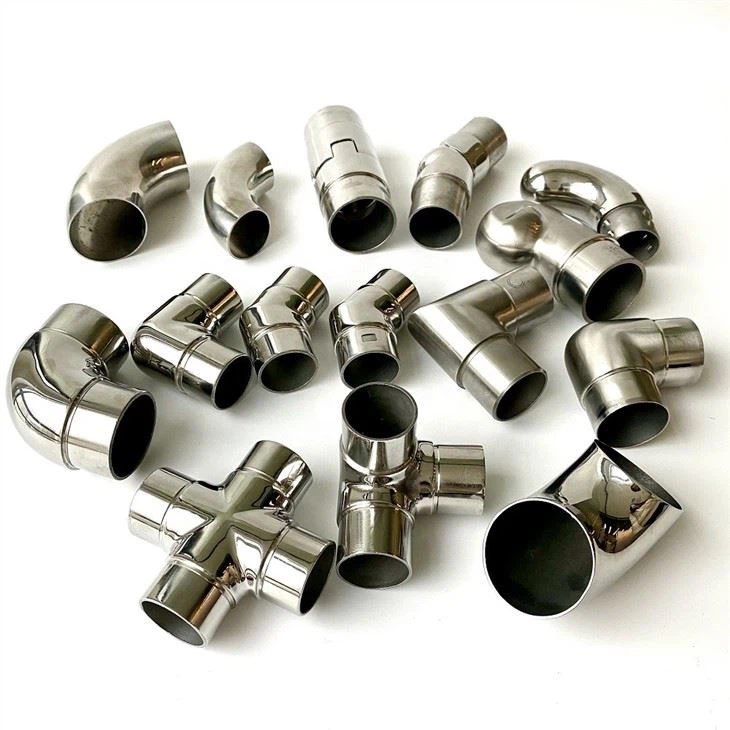

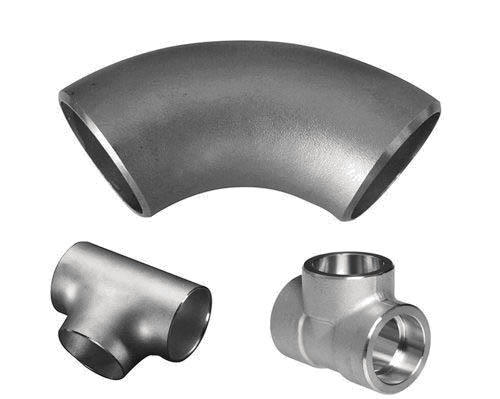

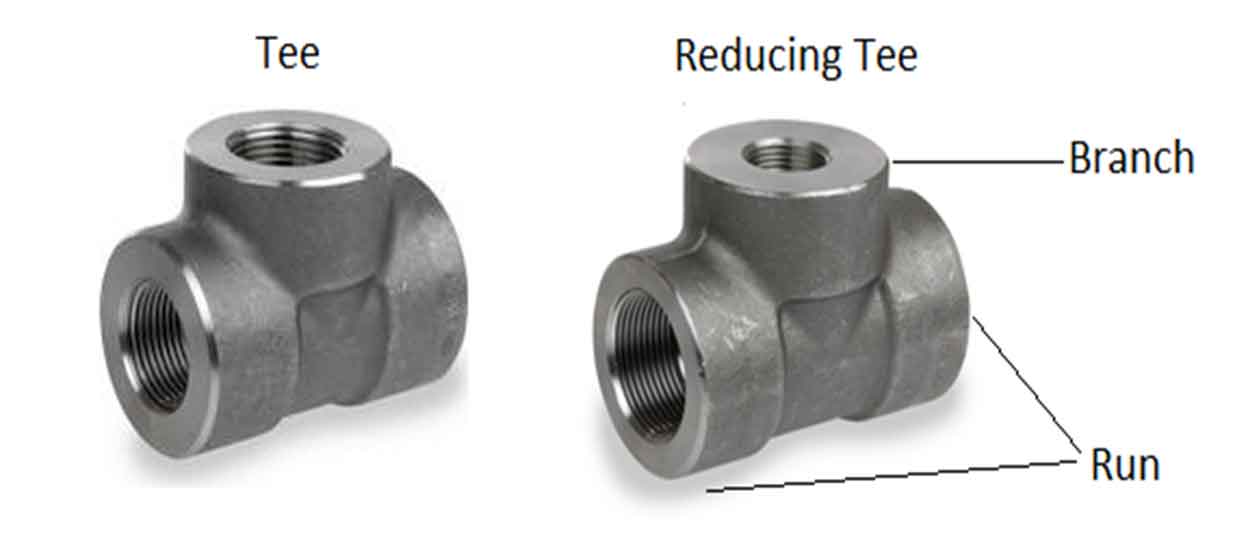

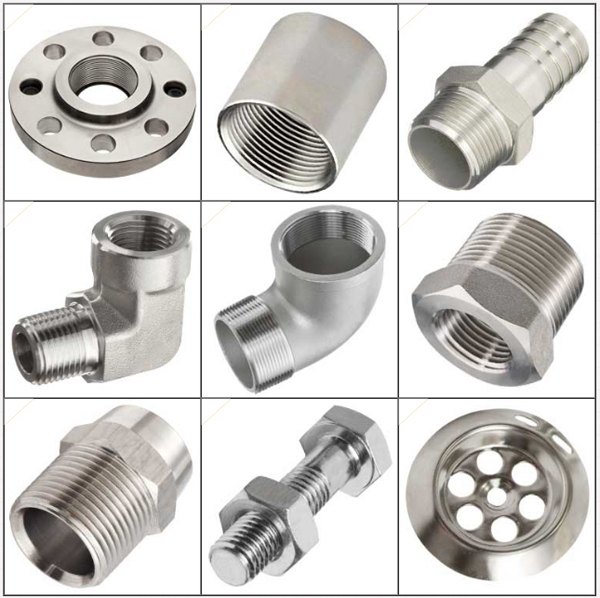

Fittings
  • Size: Varied based on type and application
  • Range: 1/8" to 48" or custom sizes as per specifications

TECHNICAL INFORMATION

Chemical properties of Stainless Steel

Chemical compositions of AISI (ASTM/ASME) and UNS austenitic stainless steel grades.

The data given is not intended to replace that shown in individual standards to which reference should always be made.

Standard 300 series austenitic grades:

Designation Chemical composition % by mass max unless stated
UNS No SAE No AISI No / Common Name C Si Mn P S Cr Mo Ni Others
S30100 30301 301 0.15 1.00 2.00 0.045 0.030 16.0/18.0 - 6.00/8.00 N 0.10
S30103 - 301L 0.03 1.00 2.00 0.045 0.030 16.0/18.0 - 6.00/8.00 N 0.20
S30153 - 301LN 0.03 1.00 2.00 0.045 0.030 16.0/18.0 - 6.00/8.00 N 0.07/0.20
S30200 30302 302 0.15 0.75 2.00 0.045 0.030 17.0/19.0 - 8.00/10.0 -
S30215 30302B 302B 0.15 2.00/3.00 2.00 0.045 0.030 17.0/19.0 - 8.00/10.0 -
S30300 30303 303 0.15 1.00 2.00 0.20 0.15 min 17.0/19.0 0.60 8.00/10.0 Zr 0.60
S30310 - XM-5 (303Plus x) 0.15 1.00 2.50/4.50 0.20 0.25 min 17.00/19.00 - 7.00/9.00 -
S30323 30303Se 303Se 0.15 1.00 2.00 0.20 0.060 17.0/19.0 - 8.00/10.0 Se 0.15 min
S30330 - 303Cu 0.15 1.00 2.00 0.15 0.10 min 17.00/19.00 - 6.00/10.00 Cu 2.5/4.00; Se 0.10

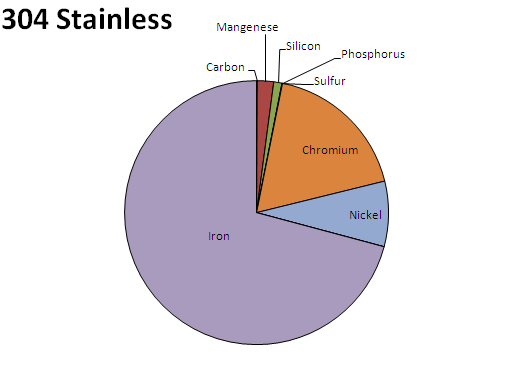

S30400 30304 304 0.08 0.75 2.00 0.045 0.030 18.0/20.0 - 8.00/10.5 -
S30403 30304L 304L 0.03 0.75 2.00 0.045 0.030 18.0/20.0 - 8.00/12.0 -
S30430 - 302HQ 0.03 1.00 2.00 0.045 0.030 17.0/19.0 - 8.0/10.0 Cu 3.0/4.0
S30452 - XM-21 (304HN) 0.08 1.00 2.00 0.045 0.030 18.0/20.0 - 8.00/10.00 N 0.16/0.30
S30453 - 304LN 0.030 0.75 2.00 0.045 0.030 18.0/20.0 - 8.00/12.0 N 0.10/0.16
S30454 - - 0.03 1.00 2.00 0.045 0.030 18.0/20.0 - 8.0/11.0 N 0.16/0.30
S30500 30305 305 0.12 1.00 2.00 0.045 0.030 17.0/19.0 - 10.5/13.0 -
S30800 30308 308 0.08 1.00 2.00 0.045 0.030 19.0/21.0 - 10.0/12.0 -
S31600 30316 316 0.08 1.00 2.00 0.045 0.030 16.0/18.0 2.00/3.00 10.0/14.0 -
S31603 30316L 316L 0.03 1.00 2.00 0.045 0.030 16.0/18.0 2.00/3.00 10.0/14.0 -
S31635 - 316Ti 0.08 0.75 2.00 0.045 0.030 16.0/18.0 2.00/3.00 10.0/14.0 Ti 5x (C+N) / 0.70
S31640 - 316Cb 0.08 0.75 2.00 0.045 0.030 16.0/18.0 2.00/3.00 10.0/14.0 Nb 10x C / 1.10
S31653 - 316LN 0.03 0.75 2.00 0.045 0.030 16.0/18.0 2.00/3.00 10.0/14.0 N 0.10/0.16
S31700 30317 317 0.08 1.00 2.00 0.045 0.030 18.0/20.0 3.00/4.00 11.0/15.0 -
S31703 - 317L 0.030 0.75 2.00 0.045 0.030 18.0/20.0 3.00/4.00 11.0/15.0 N 0.10
S31725 - 317LM 0.030 0.75 2.00 0.045 0.030 18.0/20.0 4.0/5.0 13.5/17.5 N 0.20
S31726 - 317LMN 0.030 0.75 2.00 0.045 0.030 17.0/20.0 4.0/5.0 13.5/17.5 N 0.10/0.20
S31753 - 317LN 0.030 0.75 2.00 0.045 0.030 18.0/20.0 3.0/4.0 11.0/15.0 N 0.10/0.20
S32100 30321 321 0.08 1.00 2.00 0.045 0.030 17.0/19.0 - 9.00/12.0 5 Ti 5 x C min
S34700 30347 347 0.08 1.00 2.00 0.045 0.030 17.0/19.0 - 9.00/13.0 Nb+Ta 10 x C min
S34720 - 347F 0.08 1.00 2.00 0.040 0.18/0.35 17.00/19.00 0.75 9.00/12.00 Nb 10xC / 1.10; Cu 0.75; Ta 0.05
S34723 - 347FSe 0.08 1.00 2.00 0.11/0.17 0.030 17.00/19.00 0.75 9.00/12.00 Nb 10xC / 1.10; Cu 0.75; Se 0.15/0.35; Ta 0.05
S34800 30348 348 0.08 0.75 2.00 0.045 0.030 17.0/19.0 - 9.00/13.0 Nb+Ta 10 x C / 1.00; Ta:0.10 max; Co 0.20
S38400 30384 384 0.08 1.00 2.00 0.045 0.030 15.0/17.0 - 17.0/19.0 -

Standard 200 series austenitic grades:

Designation Chemical composition % by mass max unless stated
UNS No SAE No AISI No / Common Name C Si Mn P S Cr Mo Ni Others
S20100 30201 201 0.15 1.00 5.50/7.50 0.060 0.030 16.0/18.0 - 3.50/5.50 N 0.25
S20103 - - 0.03 0.75 5.5/7.5 0.045 0.030 16.0/18.0 - 3.5/5.5 N 0.25
S20153 - - 0.03 0.75 6.4/7.5 0.045 0.015 16.0/17.5 - 4.0/5.0 N 0.10/0.25; Cu 1.00
S20161 - Gall-Tough 0.15 3.0/4.0 4.0/6.0 0.040 0.040 15.0/18.0 - 4.0/6.0 N 0.08/0.20
S20162 - - 0.15 2.5/4.5 4.0/8.0 0.040 0.040 16.5/21.0 0.05/0.25 6.0/10.0 N 0.05/0.25
S20200 30202 202 0.15 1.00 7.50/10.0 0.060 0.030 17.0/19.0 - 4.00/6.00 N 0.25
S20300 - XM-1 (203EZ) 0.08 1.00 5.0/6.5 0.045 0.18/0.35 16.0/18.0 - 5.0/6.5 Cu 1.75/2.25
S20400 - - 0.030 1.00 7.0/9.0 0.040 0.030 15.0/17.0 - 1.50/3.00 N 0.15/0.30
S20500 - 205 0.12/0.25 1.00 14.0/15.5 0.060 0.030 16.5/18.0 - 1.0/1.7 N 0.32/0.40
S20910 - XM-19 (Nitronic 50) 0.06 0.75 4.0/6.0 0.040 0.030 20.5/23.5 1.50/3.00 11.5/13.5 Nb 0.10/0.30; V 0.10/0.30
S21400 - XM-31 (Tenelon) 0.12 0.30/1.00 14.0/16.0 0.045 0.030 17.0/18.5 - 1.00 -
S21460 - XM-14 0.12 0.75 14.0/16.0 0.060 0.030 17.0/19.0 - 5.0/6.0 N 0.35/0.50
S21600 - XM-17 (216) 0.08 0.75 7.5/9.0 0.045 0.030 17.5/22.0 2.00/3.00 5.0/7.0 N 0.25/0.50
S21603 - XM-18 (216L) 0.03 0.75 7.5/9.0 0.045 0.030 17.5/22.0 2.00/3.00 5.0/7.0 N 0.25/0.50
S21800 - Nitronic 60 0.10 3.5/4.5 7.0/9.0 0.060 0.030 16.0/18.0 - 8.0/9.0 N 0.08/0.18
S21900 - 21-6-9 (Nitronic 40) 0.08 1.00 8.00/10.00 0.045 0.030 19.0/21.50 - 5.50/7.50 N 0.15/0.40
S21904 - XM-11 (Nitronic 40) 0.04 1.00 8.00/10.00 0.045 0.030 19.00/21.50 - 5.50/7.50 N 0.15/0.40
S24000 - XM-29 (Nitronic 33) 0.08 0.75 11.5/14.5 0.060 0.030 17.0/19.0 - 2.3/3.7 N 0.20/0.40
S24100 - 18-2Mn (Nitronic 32) 0.15 1.00 11.0/14.0 0.045 0.030 16.5/19.00 - 0.50/2.50 N 0.20/0.45
S28200 - 18-18 Plus 0.15 1.00 17.00/19.00 0.045 0.030 17.00/19.00 0.75/1.25 - N 0.40/0.60; Cu 0.75/1.25

Special austenitic grades:

Designation Chemical composition % by mass max unless stated
UNS No SAE No AISI No / Common Name C Si Mn P S Cr Mo Ni Others
N08020 - 20Cb-3 0.07 1.00 2.00 0.045 0.035 19.0/21.0 2.00/3.00 32.0/38.0 Cu 3.0/4.0; Nb 8xC / 1.00
N08024 - 20Mo-4 0.03 0.50 1.00 0.035 0.035 22.50/25.00 3.50/5.00 35.00/40.00 Cu 0.50/1.50; Nb+Ta 0.15/0.35
N08026 - 20Mo6 0.03 0.50 1.00 0.03 0.03 22.00/26.00 5.00/6.70 33.0/37.20 Cu 2.00/4.00; N 0.10/0.16
N08028 - Sanicro28 0.030 1.0 2.50 0.030 0.030 26.0/28.0 3.0/4.0 30.0/34.0 Cu 0.6/1.4
N08366 - AL-6X 0.035 1.00 2.00 0.040 0.030 20.00/22.00 6.00/7.00 23.50/25.50 -
N08367 - AL-6XN 0.030 1.00 2.00 0.040 0.030 20.0/22.0 6.0/7.0 23.5/25.5 Cu 0.75; N 0.18/0.25
N08700 - JS700 0.04 1.00 2.00 0.040 0.030 19.0/23.0 4.3/5.0 24.0/26.0 Cu 0.50; Nb 8xC / 0.40
N08904 - 904L 0.020 1.00 2.00 0.045 0.035 19.0/23.0 4.0/5.0 23.0/28.0 Cu 1.0/2.0
N08925 - 1925hMo 0.020 0.50 1.0 0.045 0.030 19.0/21.0 6.0/7.0 24.0/26.0 Cu 0.8/1.5; N 0.1/0.2
N08926 - - 0.020 1.50 2.00 0.030 0.010 19.0/21.0 6.0/7.0 24.0/26.0 Cu 0.5/1.5; N 0.15/0.25
S30600 - Cronifer 1815 LCSi 0.018 3.7/4.3 2.00 0.020 0.020 17.0/18.5 0.20 14.0/15.5 Cu 0.50
S30601 - - 0.015 5.0/5.6 0.50/0.80 0.030 0.013 17.0/18.0 0.20 17.0/18.0 Cu 0.05; N 0.35
S31050 - 310MoLN 0.020 0.50 2.00 0.030 0.010 24.0/26.0 1.60/2.60 0.09/0.15 N 0.09/0.15
S31254 - 254SMO 0.020 0.80 1.00 0.030 0.010 19.5/20.5 6.0/6.5 17.5/18.5 Cu 0.50/1.00; N 0.18/0.22
S31266 - - 0.030 1.00 2.0/4.0 0.035 0.020 23.0/25.0 5.2/6.2 21.0/24.0 Cu 1.00/2.50; N 0.35/0.60; W 1.50/2.50
S31277 - - 0.020 0.50 3.00 0.030 0.010 20.5/23.0 6.5/8.0 26.0/28.0 Cu 0.5/1.50; N 0.30/0.40
S32050 - - 0.030 1.00 1.50 0.035 0.020 22.0/24.0 6.0/6.8 20.0/23.0 Cu 0.40
S32615 - - 0.07 4.8/6.0 2.00 0.045 0.030 16.5/19.5 0.30/1.50 19.0/22.0 Cu 1.50/2.50
S32654 - 654SMO 0.020 0.50 2.0/4.0 0.030 0.005 24.0/25.0 7.0/8.0 21.0/23.0 Cu 0.30/0.60; N 0.45/0.55
S34565 - Nirosta 4565S 0.030 1.00 5.0/7.0 0.030 0.010 23.0/25.0 4.0/5.0 16.0/18.0 N 0.40/0.60; Nb 10x C / 1.00
S35135 - - 0.08 0.60/1.00 1.00 0.045 0.015 20.0/25.0 4.0/4.8 30./38.0 Ti 0.40/1.00
S38100 - XM-15 (18-18-2) 0.08 1.50/2.50 2.00 0.030 0.030 17.0/19.0 - 17.5/18.5 -
S38815 - - 0.030 5.5/6.5 2.00 0.040 0.020 13.0/15.0 0.75/1.50 13.0/17.0 Cu 0.75/1.50; Al 0.30

Chemical compositions of AISI (ASTM/ASME) and UNS ferritic stainless steel grades:

Designation Chemical composition % by mass max unless stated
UNS No SAE No AISI No / Common Name C Si Mn P S Cr Mo Ni Others
S18200 - XM-34 (18-2FM) 0.08 1.00 2.50 0.04 0.15 min 17.5/19.5 1.50/2.50 - -
S18235 - - 0.025 1.00 0.50 0.030 0.15/0.35 17.5/18.5 2.00/2.50 1.00 N 0.025; (C+N) 0.035; Ti 0.30/1.00
S40300 51403 403 0.15 0.50 1.00 0.040 0.030 11.5/13.0 - - -
S40500 51405 405 0.08 1.00 1.00 0.040 0.030 11.5/14.5 - - Al 0.10./0.30
S40800 - - 0.08 1.00 1.00 0.045 0.045 11.5/13.0 - 0.50 Ti 12xC/1.10
S40900 51409 409 0.08 1.00 1.00 0.045 0.045 10.5/11.75 - 0.50 Ti 6xC/0.75
S40910 - - 0.030 1.00 1.00 0.040 0.020 10.5/11.7 - 0.50 N 0.030; Ti: 6x(C+N)/0.50; Nb 0.17
S40920 - - 0.030 1.00 1.00 0.040 0.020 10.5/11.7 - 0.50 N 0.030; Ti 0.15/0.50; Nb 0.10
S40930 - - 0.030 1.00 1.00 0.040 0.020 10.5/11.7 - 0.50 N 0.030; (Ti+Nb) [0.08+8x(C+N)]/0.75; Ti 0.05
S40945 - - 0.030 1.00 1.00 0.040 0.030 10.5/11.7 - 0.50 N 0.030; Ti 0.05/0.20; Nb 0.18/0.40
S40975 - - 0.030 1.00 1.00 0.040 0.030 10.5/11.7 - 0.50/1.00 N 0.030; Ti: 6x(C+N)/0.75
S40976 - - 0.030 1.00 1.00 0.040 0.030 10.5/11.7 - 0.75/1.00 N 0.040; Nb 10x(C+N)-0.80
S40977 - - 0.030 1.00 1.00 0.040 0.015 10.5/12.5 - 0.30/1.00 N 0.030
S41003 - - 0.030 1.00 1.50 0.040 0.030 10.5/12.5 - 1.50 -
S41008 - 410S 0.08 1.00 1.00 0.040 0.030 11.5/13.5 - - -
S41045 - - 0.030 1.00 1.00 0.040 0.030 12.0/13.0 - 0.50 N 0.030; Nb 9x(C+N)/0.60
S41050 - - 0.04 1.00 1.00 0.040 0.030 10.5/12.5 - 0.60/1.10 N 0.10
S41500 - - 0.05 0.60 0.50/1.00 0.030 0.030 11.5/14.0 0.50/1.00 3.5/5.5 -
S41603 - - 0.08 1.00 1.25 006 0.15min 12.0/14.0 - - -
S42035 - - 0.08 1.00 1.00 0.045 0.030 13.5/15.5 0.2/1.2 - Ti 0.30/0.50
S43000 51430 430 0.12 1.00 1.00 0.040 0.030 16.0/18.0 - - -
S43020 51430F 430F 0.12 1.00 1.25 0.060 0.15 min 16.0/18.0 0.60 - -
S43023 51430FSe 430FSe 0.12 1.00 1.25 0.060 0.060 16.0/18.0 - - Se 0.15
S43036 - 430Ti 0.10 1.00 1.00 0.040 0.030 16.00/19.50 - 0.75 Ti 5xC/0.75
S43400 51434 434 0.08 1.00 1.00 0.040 0.030 16.0/18.0 0.75/1.25 - -
S43600 51436 436 0.08 1.00 1.00 0.040 0.030 16.0/18.0 0.75/1.25 - Nb+Ta 5xC/0.70
S44200 51442 442 0.20 1.00 1.00 0.040 0.035 18.0/23.0 - - -

Special ferritic grades:

Designation Chemical composition % by mass max unless stated
UNS No SAE No AISI No / Common Name C Si Mn P S Cr Mo Ni Others
S32803 - Cronifer 2803Mo 0.015 0.55 0.50 0.020 0.0035 28.0/29.0 1.80/2.50 3.0/4.0 N 0.020; (C+N) 0.030; Nb 0.15/0.50
S43035 - 435 0.030 1.00 1.00 0.040 0.030 17.0/19.0 - 0.50 Ti [0.20+4(C+N)] / 1.10; Al 0.15
S43900 51439 439 0.07 1.00 1.00 0.040 0.030 17.0/19.0 - 0.50 Ti [0.20+4(C+N)] / 1.10; Al 0.15; N:0.04
S43903 51439LL 439LL 0.014 1.00 1.00 0.040 0.030 17.0/19.0 - 0.50 Ti [0.20+4(C+N)] / 1.10; Al 0.15; N:0.04
S43932 - - 0.030 1.00 1.00 0.040 0.030 17.0/19.0 - 0.50 N 0.030; (Ti+Nb) [0.20+4(C+N)] / 0.75; Al 0.15
S43940 - - 0.030 1.00 1.00 0.040 0.015 17.5/18.5 - 0.50 Ti 0.10/0.60; Nb [0.30+(3xC)] min
S44400 - 444 18Cr-2Mo 0.025 1.00 1.00 0.040 0.030 17.5/19.5 1.75/2.50 1.00 N 0.035; (Ti+Nb)[0.20+4(C+N)] / 0.80
S44500 - - 0.020 1.00 1.00 0.040 0.012 19.0/21.0 - 0.60 N 0.03; Cu 0.30/0.60; Nb 10x(C+N) / 0.80
S44626 - XM-33 (26-1Ti) 0.06 0.75 0.75 0.040 0.020 25.0/27.0 0.75/1.50 0.50 N 0.04; Cu 0.20; Ti 0.20/1.00
S44627 - XM-27 0.010 0.40 0.40 0.020 0.020 25.0/27.0 0.75/1.50 0.50 N 0.015; Cu 0.20; Nb 0.05/0.20; (Ni+Cu) 0.50
S44635 - Nu Monit (25-4-4) 0.025 0.75 1.00 0.040 0.030 24.5/26.0 3.5/4.5 3.5/4.5 N 0.035; (Ti+Nb){0.20+4(C+N)] / 0.80
S44660 - Sea-cure (26-3-3) 0.030 1.00 1.00 0.040 0.030 25.0/28.0 3.0/4.0 1.0/3.5 N 0.040; (Ti+Nb)0.20 / 1.00; (Ti+Nb) [6x(C+N)] min
S44700 - 29-4 0.010 0.20 0.30 0.025 0.020 28.0/30.0 3.5/4.2 0.15 N 0.020; Cu 0.15; (C+N) 0.025
S44735 - - 0.030 1.00 1.00 0.040 0.030 28.0/30.0 3.6/4.2 1.00 N 0.045; (Ti+Nb)0.20/1.00; (Ti+Nb) 6x (C+N) min
S44800 - 29-4-2 0.010 0.20 0.30 0.025 0.020 28.0/30.0 3.5/4.2 2.00/2.50 N 0.020; Cu 0.15; (C+N) 0.025
S46800 - - 0.030 1.00 1.00 0.040 0.030 18.0/20.0 - 0.50 N 0.030; Ti 0.07/0.30; Nb 0.10/0.60; (Ti+Nb) [0.20+4(C+N)] / 0.80

Chemical compositions of AISI (ASTM/ASME) and UNS heat resisting stainless steel grades:

Designation Chemical composition % by mass max unless stated
UNS No SAE No AISI No / Common Name C Si Mn P S Cr Mo Ni Others
S21500 - Esshete 1250 0.06/0.15 0.20/1.0 5.50/7.0 0.045 0.030 14.0/16.0 0.80/1.20 9.00/11.0 B 0.003/0.009; Nb 0.75/1.25; V 0.15/0.40
S30409 - 304H 0.04/0.10 0.75 2.00 0.045 0.030 18.0/20.0 - 8.0/10.5 -
S30415 - 153MA 0.04/0.06 1.00/2.00 0.80 0.045 0.030 18.0/19.0 - 9.0/10.0 N 0.12/0.18; Ce 0.03/0.08
S30451 - 304N 0.08 0.75 2.00 0.045 0.030 18.0/20.0 - 8.0/10.5 N 0.10/0.16
S30452 - 304HN (XM-21) 0.08 0.75 2.00 0.045 0.030 18.0/20.0 - 8.0/10.5 N 0.16/0.30
S30615 - RA85H 0.16/0.24 3.2/4.0 2.00 0.030 0.030 17.0/19.5 - 13.5/16.0 Al 0.80/1.50
S30815 - 253MA 0.05/0.10 1.40/2.00 0.80 0.040 0.030 20.0/22.0 - 10.0/12.0 N 0.14/0.20; Ce 0.03/0.08
S30900 30309 309 0.20 1.00 2.00 0.045 0.030 22.0/24.0 - 12.0/15.0 -
S30908 30309S 309S 0.08 0.75 2.00 0.045 0.030 22.0/24.0 - 12.0/15.0 -
S30909 - 309H 0.04/0.10 0.75 2.00 0.045 0.030 22.0/24.0 - 12.0/15.0 -
S30940 - 309Cb 0.08 0.75 2.00 0.045 0.030 22.0/24.0 - 12.0/16.0 Nb 10xC / 1.10
S30941 - 309HCb 0.04/0.10 0.75 2.00 0.045 0.030 22.0/24.0 - 12.0/16.0 Nb 10xC / 1.10
S31000 30310 310 0.25 1.50 2.00 0.045 0.030 24.0/26.0 - 19.0/22.0 -
S31008 30310S 310S 0.08 1.50 2.00 0.045 0.030 24.0/26.0 - 19.0/22.0 -
S31009 - 310H 0.04/0.10 0.75 2.00 0.045 0.030 24.0/26.0 - 19.0/22.0 -
S31040 - 310Cb 0.08 1.50 2.00 0.045 0.030 24.0/26.0 - 19.0/22.0 Nb 10xC / 1.10
S31041 - 310HCb 0.04/0.10 0.75 2.00 0.045 0.030 24.0/26.0 - 19.0/22.0 Nb 10xC / 1.10
S31400 30314 314 0.25 1.50/3.00 2.00 0.045 0.030 23.0/26.0 - 19.0/22.0 -
S31609 - 316H 0.04/0.10 0.75 2.00 0.045 0.030 16.0/18.0 2.00/3.00 10.0/14.0 -
S31651 - 316N 0.08 0.75 2.00 0.045 0.030 16.0/18.0 2.00/3.00 10.0/14.0 N 0.10/0.16
S32109 - 321H 0.04/0.10 0.75 2.00 0.045 0.030 17.0/19.0 - 9.0/12.0 Ti 4x(C+N) / 0.70
S33228 - - 0.04/0.08 0.30 1.00 0.020 0.015 26.0/28.0 - 31.0/33.0 Al 0.025;Ce 0.05/0.10; Nb 0.6/1.0
S33400 - 334 0.08 1.00 1.00 0.030 0.015 18.0/22.0 - 19.0/21.0 Al 0.15/0.60; Ti 0.15/0.60
S34709 - 347H 0.04/0.10 0.75 2.00 0.045 0.030 17.0/19.0 - 9.0/13.0 Nb 8xC /1.00
S34800 - 348 0.08 0.75 2.00 0.045 0.030 17.0/19.0 - 9.0/13.0 Nb+Ta 10xC / 1.00; Ta 0.10; Co 0.20
S34809 - 348H 0.04/0.10 0.75 2.00 0.045 0.030 17.0/19.0 - 9.0/13.0 Nb+Ta 10xC /1.00; Ta 0.10; Co 0.20
S35045 - - 0.06/0.10 1.00 1.50 0.045 0.015 25.0/29.0 - 32.0/37.0 Al 0.15/0.60; Ti 0.15/0.60
S35315 - 353MA 0.04/0.08 1.20/2.00 2.00 0.040 0.030 24.0/26.0 - 34.0/36.0 N 0.12/0.18; Ce 0.03/0.10
S41041 - - 0.13/0.18 0.50 0.40/0.60 0.030 0.030 11.50/13.00 0.20 0.50 Al 0.05; Nb 0.15
S41425 - - 0.05 0.50 0.50/1.00 0.020 0.005 12.0/15.0 1.50/2.00 4.0/7.0 N 0.06/0.12; Cu 0.30
S41800 - Greek Ascoloy (615) 0.15/0.20 0.50 0.50 0.040 0.030 12.00/14.00 0.50 1.80/2.20 W 2.50/3.50
S42200 - 616 0.20/0.25 0.50 0.50/1.00 0.025 0.025 11.00/12.50 0.90/1.25 0.50/1.00 V 0.20/0.30; W 0.90/1.25
S42300 - Lapelloy (619) 0.27/0.32 0.50 0.95/1.35 0.025 0.025 11.00/12.00 2.50/3.00 0.50 V 0.20/0.30
S44300 - MT443 0.20 1.00 1.00 0.040 0.030 18.0/23.0 - 0.50 Cu 0.90/1.25
S44600 51446 446 0.20 1.00 1.50 0.040 0.030 23.0/27.0 - - N 0.25
S64152 - XM-32 0.08/0.15 0.35 0.50/0.90 0.025 0.025 11.00/12.50 1.50/2.00 2.00/3.00 N 0.01/0.05; V 0.25/0.40
N08800 - 800 (332) 0.10 1.00 1.50 0.045 0.015 19.0/23.0 - 30.0/35.0 Fe 39.5 min; Al 0.15/0.60; Ti 0.15/0.60
N08810 - 800H 0.05/0.10 1.00 1.50 0.045 0.015 19.0/23.0 30.0/35.0 30.0/35.0 Cu 0.75; Fe 39.5 min; Al 0.15/0.60; Ti 0.15/0.60
N08811 - - 0.06/0.10 1.00 1.50 0.040 0.015 19.0/23.0 - 30.0/35.0 Cu 0.75; Fe 39.5 min; Al 0.15/0.60; Ti 0.15/0.60

Chemical compositions of AISI (ASTM/ASME) and UNS martensitic and precipitation hardening stainless steel grades:

Designation Chemical composition % by mass max unless stated
UNS No SAE No AISI No / Common Name C Si Mn P S Cr Mo Ni Others
S13800 - XM-13 PH13-8Mo 0.05 0.10 0.20 0.010 0.008 12.25/13.25 2.00/2.50 7.50/8.50 N 0.01; Al 0.90/1.35
S15500 - XM-12 15-5PH 0.07 1.00 1.00 0.040 0.030 14.0/15.5 - 3.50/5.50 Cu 2.5/4.5; Nb 0.15/0.45
S15700 - 632 15-7PH 0.09 1.00 1.00 0.040 0.030 14.00/16.00 2.00/3.00 6.50/7.25 Al 0.75/1.50
S17400 - 630 17-4PH 0.07 1.00 1.00 0.040 0.030 15.5/17.5 - 3.00/5.00 Cu 3.00/5.00; Al 0.15/0.45
S17600 - 635 0.08 1.00 1.00 0.040 0.030 16.00/17.50 - 6.00/7.50 Al 0.40; Ti 0.40/1.20
S17700 - 631 17-7PH 0.09 1.00 1.00 0.040 0.040 16.00/18.00 - 6.50/7.75 Al 0.75/1.50
S35000 - 633 0.07/0.11 0.50 0.50/1.25 0.040 0.030 16.00/17.00 2.50/3.25 4.00/5.00 N 0.07/0.13
S35500 - 634 0.10/0.15 0.50 0.50/1.25 0.040 0.030 15.00/16.00 2.50/3.25 4.00/5.00 N 0.07/0.13
S41000 51410 410 0.15 1.00 1.00 0.040 0.030 11.5/13.5 - - -
S41040 - XM-30 0.18 1.00 1.00 0.040 0.030 11.0/13.0 - - Nb 0.05/0.30
S41400 51414 414 0.15 1.00 1.00 0.040 0.030 11.5/13.5 - 1.25/2.50 -
S41500 - - 0.05 0.60 0.50/1.00 0.030 0.030 11.5/14.0 0.50/1.00 3.5/5.5 -
S41600 51416 416 0.15 1.00 1.25 0.060 0.15 min 12.0/14.0 0.60 - Zr 0.60
S41610 - XM-6 (416 Plus X) 0.15 1.00 1.50/2.50 0.06 0.15 min 12.0/14.0 - - -
S41623 51416Se 416Se 0.15 1.00 1.25 0.060 0.060 12.0/14.0 - - Se 0.15 min
S42000 51420 420 0.15 min 1.00 1.00 0.040 0.030 12.0/14.0 - - -
S42010 - Trim Rite 0.15/0.30 1.00 1.00 0.040 0.030 13.5/15.00 0.40/0.85 0.35/0.85 -
S42020 51420F 420F 0.15 min 1.00 1.25 0.060 0.15 min 12.0/14.0 0.60 - -
S42023 51420FSe 420FSe 0.30/0.40 1.00 1.25 0.060 0.060 12.0/14.0 - - Se 0.15 min
S42900 51429 429 0.12 1.00 1.00 0.040 0.030 14.0/16.0 - - -
S43100 51431 431 0.20 1.00 1.00 0.040 0.030 15.0/17.0 - 1.25/2.50 -
S44002 51440A 440A 0.60/0.75 1.00 1.00 0.040 0.030 16.0/18.0 0.75 - -
S44003 51440B 440B 0.75/0.95 1.00 1.00 0.040 0.030 16.0/18.0 0,75 - -
S44004 51440C 440C 0.95/1.20 1.00 1.00 0.040 0.030 16.0/18.0 0.75 - -
S44020 51440F 440F 0.95/1.20 1.00 1.25 0.060 0.15 min 16.0/18.0 0.75 - Zr 0.75
S44023 51440FSe 440FSe 0.95/1.20 1.00 1.25 0.060 0.060 16.0/18.0 - - Se 0.15 min
S45000 - XM-25 Custom 450 0.05 1.00 1.00 0.030 0.030 14.00/16.00 0.50/1.00 5.00/7.00 Cu 1.25/1.75; Nb 8xC min
S45500 - XM-16 Custom 455 0.05 0.50 0.50 0.040 0.030 11.00/12.50 0.50 7.50/9.50 Cu 1.50/2.50; Nb 0.10/0.50
S45503 - - 0.010 0.20 0.50 0.010 0.010 11.00/12.50 0.50 7.50/9.50 Cu 1.50/2.50; Ti 1.00/1.35
S46500 - - 0.02 0.25 0.25 0.015 0.010 11.00/12.50 0.75/1.25 10.75/11.25 Mo 0.75/1.25; Ti 1.50/1.80
S66286 - A286 0.08 1.00 2.00 0.040 0.030 13.50/16.00 1.00/1.50 24.0/27.0 Al 0.35; B 0.0010/0.010; Ti 1.90/2.35; V 0.10/0.50

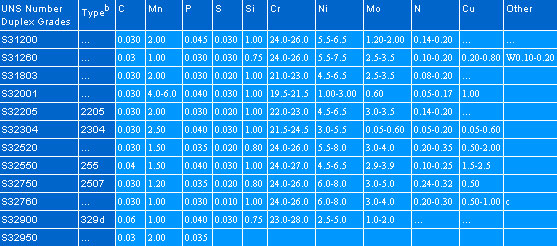

Composition of Duplex Stainless Steel:
